• Country
• Italy

• Manufacturer / Brand
• Minerva (Ital-Minerva); Milano

• Year
• 1947/1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 94210

• • alternative name: Cozzi Luigi Dell'Aquila

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH4 EF9 EBF2 EL3 6X5

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

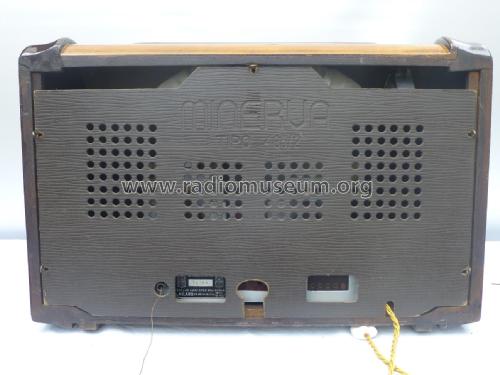

• Model: Paradiso 485/2-PH - Minerva Ital-Minerva; Milano

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 520 x 330 x 250 mm / 20.5 x 13 x 9.8 inch

• Notes

• Controllo di tono. Ingresso per giradischi.

  Autotrasformatore: Telaio collegato alla rete elettrica. Non tutti i casi sono dichiarati poichè spesso chi propone il modello non lo può sapere.

• Source of data
• Guida Pratica Antique Radio V (2003)

• Literature/Schematics (1)
• Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 174)

• Author
• Model page created by Pierantonio Ganazzin. See "Data change" for further contributors.
