• Country
• Italy

• Manufacturer / Brand
• Minerva (Ital-Minerva); Milano

• Year
• 1971 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 348172

• • alternative name: Cozzi Luigi Dell'Aquila

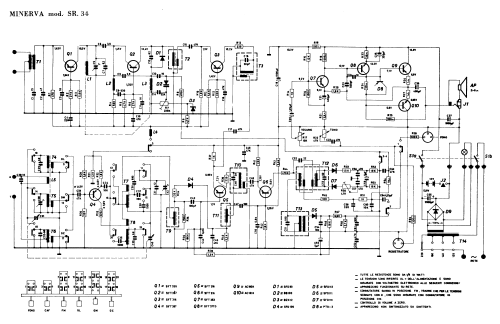

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• SFT358 SFT357 SFT316 SFT357 SFT316 SFT316 SFT377 AC180 AC181 SFD80 BB100 BZX12 SFD106 SFD112 SFD111 SFD111

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 125; 140; 160; 220 / CC: 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Radio a Transistor SR.34 - Minerva Ital-Minerva; Milano

• Notes

• Radio a transistor con OL, OM, OC e MF. Funzionamento a batterie e rete elettrica. Controllo di tono. Presa per registratore.
  Presa per altoparlante esterno o cuffia che esclude l'altoparlante interno.

• Mentioned in
• -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" marzo 1971.)

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
