Ranger 350
Minerva (Ital-Minerva); Milano
- Country
- Italy
- Manufacturer / Brand
- Minerva (Ital-Minerva); Milano
- Year
- 1974
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 243138
-
- alternative name: Cozzi Luigi Dell'Aquila
The soldering of a power cable is broken.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 50-60 Hz, 220 / 6 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 1.5 W (3 W max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Ranger 350 - Minerva Ital-Minerva; Milano
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 180 x 240 x 70 mm / 7.1 x 9.4 x 2.8 inch
- Notes
-
FM/MW/MARINE BAND European/SW 4 Band
7 Transistor + 1 I.C.

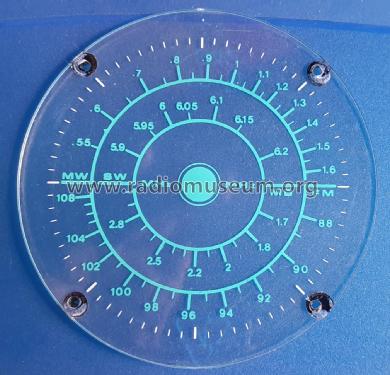

Frequency range
FM 87-108 MHz
MW 0,52 -1,62 MHz
Marine band 1,62-2,9 MHz
European SW 5,9-6,2 MHzMade in Italy.
Ferrite 11cm; telescopic 8 sections 78 cm.
- Net weight (2.2 lb = 1 kg)
- 0.650 kg / 1 lb 6.9 oz (1.432 lb)
- Mentioned in
- -- Original prospect or advert (Advert in newspaper L'Unità December 1974)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
