Trieste 607/1
Minerva (Ital-Minerva); Milano
- Country
- Italy
- Manufacturer / Brand
- Minerva (Ital-Minerva); Milano
- Year
- 1960–1962
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 152355
-
- alternative name: Cozzi Luigi Dell'Aquila

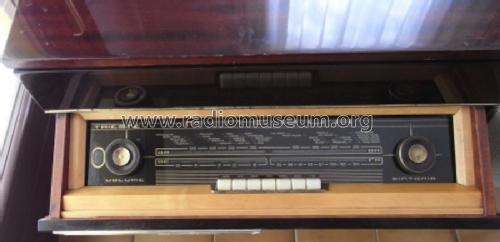

Radio Minerva Trieste 607/1

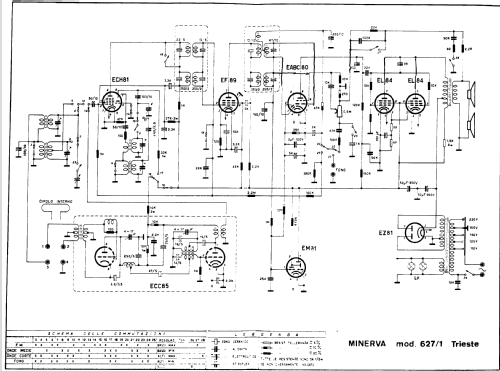

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 7 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Trieste 607/1 - Minerva Ital-Minerva; Milano
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 1050 x 700 x 380 mm / 41.3 x 27.6 x 15 inch
- Notes
- Giradischi 4 velocità.
4 speed record player.
- Net weight (2.2 lb = 1 kg)
- 30 kg / 66 lb 1.3 oz (66.079 lb)
- Source of data
- Guida Pratica Antique Radio III (2000)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
