• Country
• Italy

• Manufacturer / Brand
• Minerva (Ital-Minerva); Milano

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 152370

• • alternative name: Cozzi Luigi Dell'Aquila

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 UF89 UABC80 DM70 UL84 UY85

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

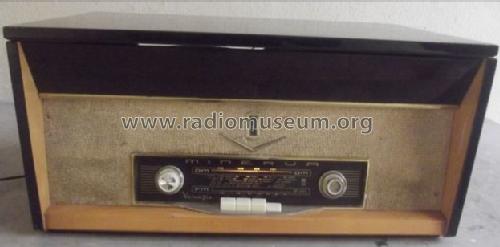

• Model: Venezia 626/4 - Minerva Ital-Minerva; Milano

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 550 x 310 x 260 mm / 21.7 x 12.2 x 10.2 inch

• Source of data
• Guida Pratica Antique Radio IV (2001)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.

• Other Models

• Here you find 252 models, 198 with images and 146 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
