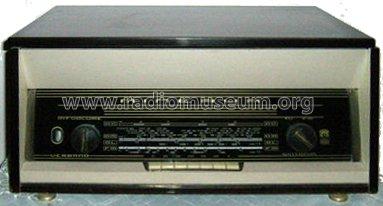

Verbano 646/5
Minerva (Ital-Minerva); Milano
- Country
- Italy
- Manufacturer / Brand
- Minerva (Ital-Minerva); Milano
- Year
- 1963/1964
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 109038
-
- alternative name: Cozzi Luigi Dell'Aquila
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 125; 140; 160; 220; 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Verbano 646/5 - Minerva Ital-Minerva; Milano
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 570 x 330 x 290 mm / 22.4 x 13 x 11.4 inch
- Source of data
- Guida Pratica Antique Radio IV (2001)
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
