HF-Verstärker für 144-146 MHz ML-500
Minix, Hannover
- Country
- Germany
- Manufacturer / Brand
- Minix, Hannover
- Year
- 1972
- Category
- RF (Radio Frequency-) Amplifier
- Radiomuseum.org ID
- 231549
-
- Brand: Richter & Co; Hannover
- Number of Transistors
- 3
- Semiconductors
- unknown_tr unknown_tr BLY90
- Main principle
- Radio Frequency Amplification only
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Batteries / addl. power jack / 13,8 Volt
- Loudspeaker
- - - No sound reproduction output.
- Power out
- 50 W (max.)
- Material
- Metal case
- from Radiomuseum.org

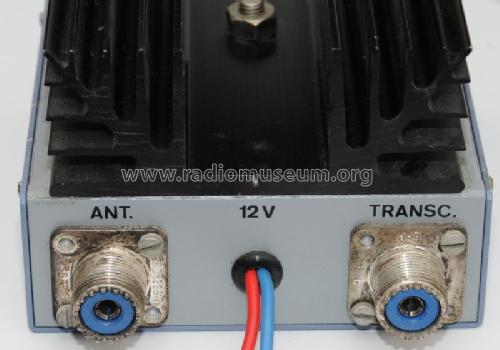

- Model: HF-Verstärker für 144-146 MHz ML-500 - Minix, Hannover
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 100 x 70 x 135 mm / 3.9 x 2.8 x 5.3 inch
- Notes
-
FM Leistungsverstärker, Verstärkung ca. 6 dB. HF-gesteuerte Sende-Empfangsumschaltung.
Frequenzbereich: 144-146 MHz
- Net weight (2.2 lb = 1 kg)
- 0.6 kg / 1 lb 5.1 oz (1.322 lb)
- Mentioned in
- Funk-Technik (FT) (13/1972, S. 485, 486 / Neuvorstellung, Messe Wolfsburg)
- Author
- Model page created by Joachim Schuette. See "Data change" for further contributors.
