MTL-50
Minix, Hannover
- Country
- Germany
- Manufacturer / Brand
- Minix, Hannover
- Year
- 1967
- Category
- Amateur Equipment (Other, but not Key)
- Radiomuseum.org ID
- 99758
-
- Brand: Richter & Co; Hannover
Inserat UKW-Berichte Heft 2 / 1967

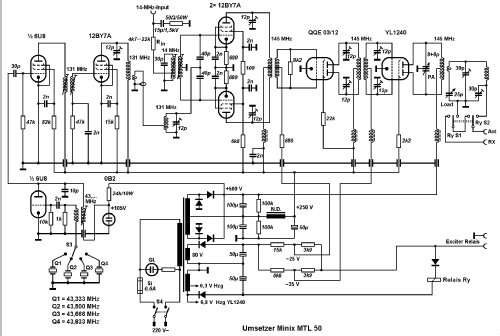

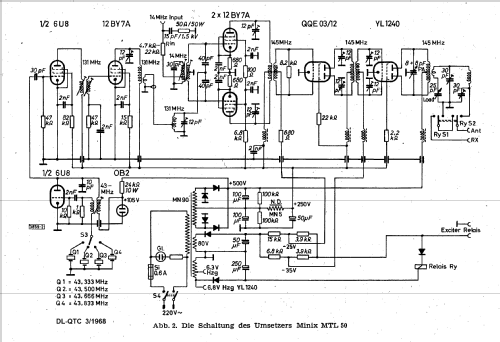

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Radio Frequency Amplification only
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: MTL-50 - Minix, Hannover
- Shape
- Tablemodel, low profile (big size).
- Notes
- Minix Linear-Transverter MTL-50.
Setzt das 20-m-Band (14,0-14,5 MHz) in das 2-m-Band (144-146 MHz) in 4 Teilbereichen um; eingebauter 50-W-Dummyload für den 14-MHz-Sender.
- Price in first year of sale
- 748.00 DM
- Mentioned in
- UKW-Berichte 2/1967 (August), Inserat
- Author
- Model page created by Otto Frosinn. See "Data change" for further contributors.
