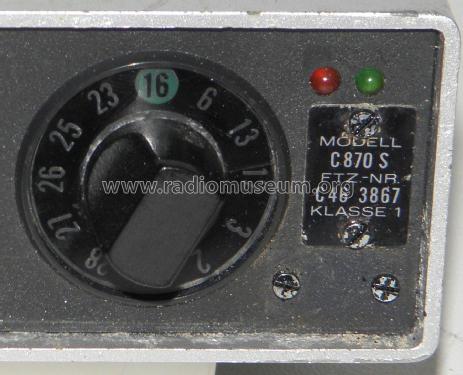

VHF Marine Radio Seefunkgerät Standard Minix C870S
Minix, Hannover
- Country
- Germany
- Manufacturer / Brand
- Minix, Hannover
- Year
- 1967 ??
- Category
- Commercial Transmitter & Receiver (TRX not Amateur)
- Radiomuseum.org ID
- 292405
-
- Brand: Richter & Co; Hannover
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Transceiver
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: VHF Marine Radio Seefunkgerät Standard Minix C870S - Minix, Hannover
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 170 x 55 x 245 mm / 6.7 x 2.2 x 9.6 inch
- Notes
-
Funksprechgerät für Schiffe, 11 Kanäle (Steckquarze) im Frequenzbereich 156,050 - 162,025 MHz, Frequenzmodulation. Sendeleistung umschaltbar 1 W / 10 W. Hergestellt in Japan.
Zulassung FTZ-Nr. C46 3867. Metallgehäuse zum An- bzw. Unterbau.
- Net weight (2.2 lb = 1 kg)
- 1.8 kg / 3 lb 15.4 oz (3.965 lb)
- Author
- Model page created by Siegfried Droese. See "Data change" for further contributors.
