• Country
• Soviet Union

• Manufacturer / Brand
• Minsk Radio Works; Minsk

• Year
• 1970–1973 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 97162

• • alternative name: Industrial Union Horizont || Minsk Works "Kalibr"

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 17

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Dry Batteries / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.7 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

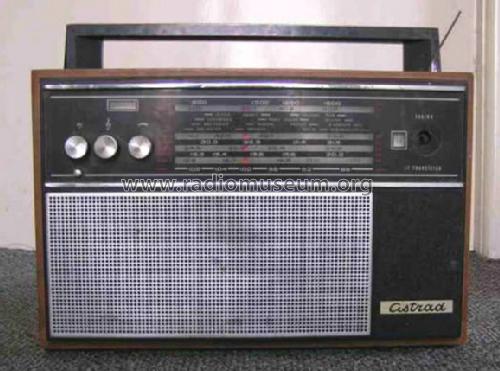

• Model: Astrad Selena - Minsk Radio Works; Minsk

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 352 x 261 x 116 mm / 13.9 x 10.3 x 4.6 inch

• Notes
• Coverage MW, LW, 5 SW (16,75 - 50,4 Mhz), FM (88-108 Mhz). Analog portable russian radio set "Okean 203" (see RMorg). Model name "Astrad Selena" for export.

• Net weight (2.2 lb = 1 kg)
• 3.9 kg / 8 lb 9.4 oz (8.59 lb)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
