• Country
• Soviet Union

• Manufacturer / Brand
• Minsk Radio Works; Minsk

• Year
• 1962

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 89134

• • alternative name: Industrial Union Horizont || Minsk Works "Kalibr"

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes

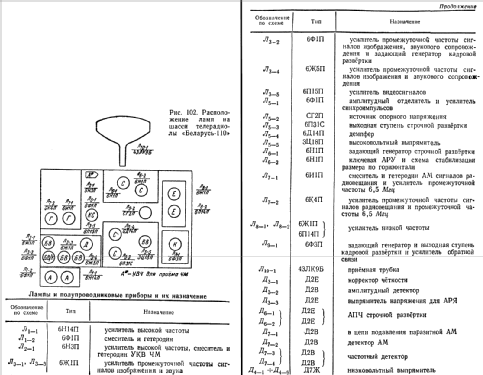

• 6Н14П 6Ф1П 6Н3П 6Ж1П 6Ж1П 6Ф1П 6Ж5П 6П15П 6Ф1П 6П31С 6Д14П 3Ц18П 6Н1П 6Н1П 6И1П 6К4П 6Ж1П 6П14П 6Ф3П 43lk9b СГ1П or СГ-2П

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 127, 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 1.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

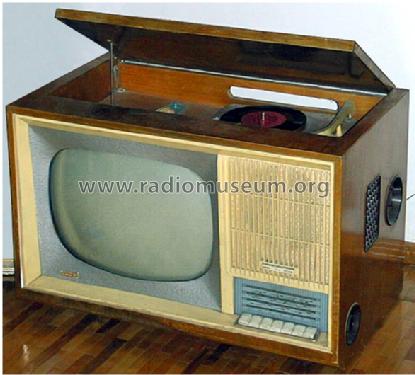

• Model: Belarus' - Беларусь 110 - Minsk Radio Works; Minsk

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 690 x 465 x 400 mm / 27.2 x 18.3 x 15.7 inch

• Notes

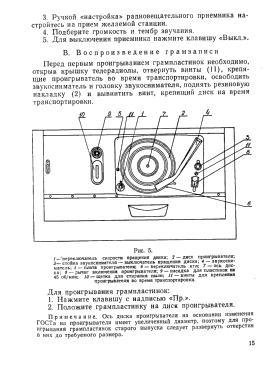

• TV screen 360x270 mm. Four speed record player.

• Net weight (2.2 lb = 1 kg)
• 38 kg / 83 lb 11.2 oz (83.7 lb)

• Price in first year of sale
• 432.00 RUR

• Mentioned in
• - - Data from my own collection

• Literature/Schematics (1)
• G.P. Samojlov, 1965

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
