Belarus' - Беларусь 53 2

Minsk Radio Works; Minsk

Data

Forum

Pictures

Collections

Country
Soviet Union

Manufacturer / Brand
Minsk Radio Works; Minsk

Year
1953–1955

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
30467

- alternative name: Industrial Union Horizont || Minsk Works "Kalibr"

Schematics

Belarus' - Беларусь 53; Minsk Radio Works; (ID = 40612) Radio — Minsk Radio Works; Belarus' - Беларусь 53 (3)

Belarus' - Беларусь 53; Minsk Radio Works; (ID = 109005) Radio — Minsk Radio Works; Belarus' - Беларусь 53 (3)

Belarus' - Беларусь 53; Minsk Radio Works; (ID = 109006) Radio — Minsk Radio Works; Belarus' - Беларусь 53 (3)

Belarus' - Беларусь 53; Minsk Radio Works; (ID = 36146) Radio — Minsk Radio Works; Belarus' - Беларусь 53 (1)

Belarus' - Беларусь 53; Minsk Radio Works; (ID = 36147) Radio — Minsk Radio Works; Belarus' - Беларусь 53 (1)

Belarus' - Беларусь 53; Minsk Radio Works; (ID = 36148) Radio — Minsk Radio Works; Belarus' - Беларусь 53 (1)

Belarus' - Беларусь 53; Minsk Radio Works; (ID = 36150) Radio — Minsk Radio Works; Belarus' - Беларусь 53 (1)

Belarus' - Беларусь 53; Minsk Radio Works; (ID = 36151) Radio — Minsk Radio Works; Belarus' - Беларусь 53 (1)

Belarus' - Беларусь 53; Minsk Radio Works; (ID = 36298) Radio — Minsk Radio Works; Belarus' - Беларусь 53 (1)

Belarus' - Беларусь 53; Minsk Radio Works; (ID = 48511) Radio — Minsk Radio Works; Belarus' - Беларусь 53 (1)

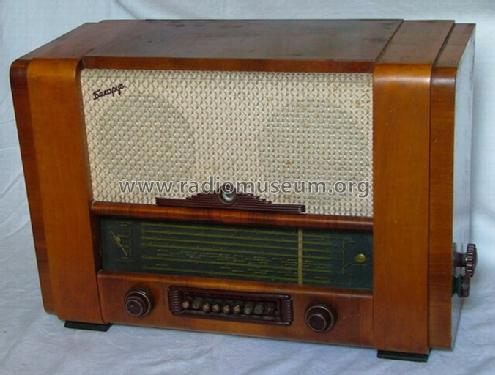

Belarus' - Беларусь 53; Minsk Radio Works; (ID = 92315) Radio — Minsk Radio Works; Belarus' - Беларусь 53 (1)
Kaunas, Lithuania

Belarus' - Беларусь 53; Minsk Radio Works; (ID = 170150) Radio — Minsk Radio Works; Belarus' - Беларусь 53 (1)

Belarus' - Беларусь 53; Minsk Radio Works; (ID = 1382669) Radio — Minsk Radio Works; Belarus' - Беларусь 53 (1)

Belarus' - Беларусь 53; Minsk Radio Works; (ID = 2218925) Radio — Minsk Radio Works; Belarus' - Беларусь 53 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
14

Valves / Tubes
6К3 6А7 6А7 6К3 6Б8С 6К3 6Г2 6Е5С 6Г2 6Н7С 6П3С 6П3С 5Ц4С 5Ц4С

Main principle
Superhet with RF-stage; ZF/IF 465 kHz

Tuned circuits
9 AM circuit(s)

Wave bands
Broadcast, Long Wave and more than two Short Wave bands.

Power type and voltage
Alternating Current supply (AC) / 110-220 Volt

Loudspeaker
2 Loudspeakers

Material
Wooden case

from Radiomuseum.org
Model: Belarus' - Беларусь 53 [2] - Minsk Radio Works; Minsk

Shape
Tablemodel with Push Buttons.

Dimensions (WHD)
730 x 490 x 350 mm / 28.7 x 19.3 x 13.8 inch

Notes
Mehrfach variable Bandbreitenregelung, Spulenrevolver, sechs Stationstasten, ausschließlich luftdichte "Sikatrop"-Kondensatoren verbaut. / Turret tuner, variable IF selectivity, six station presets; only vacuum sealed capacitors and other high performance components built in. "High-class" Radio!

Net weight (2.2 lb = 1 kg)
42 kg / 92 lb 8.2 oz (92.511 lb)

Source of data
-- Collector info (Sammler)

Mentioned in
Past Soviet Union magazine RADIO Nr.06 - 1954
