• Country
• Soviet Union

• Manufacturer / Brand
• Minsk Radio Works; Minsk

• Year
• 1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75793

• • alternative name: Industrial Union Horizont || Minsk Works "Kalibr"

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• ГТ309 ГТ309 ГТ309 ГТ108 ГТ108 П41 МП38 Д9

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

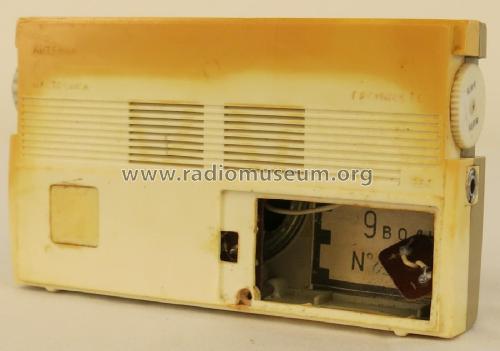

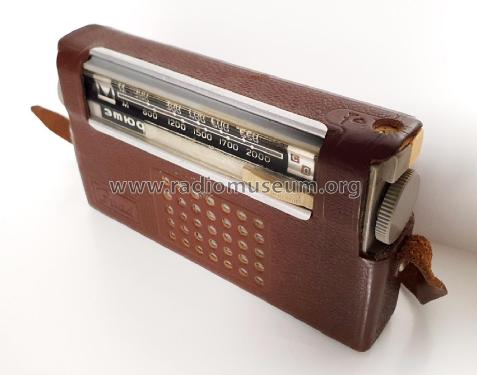

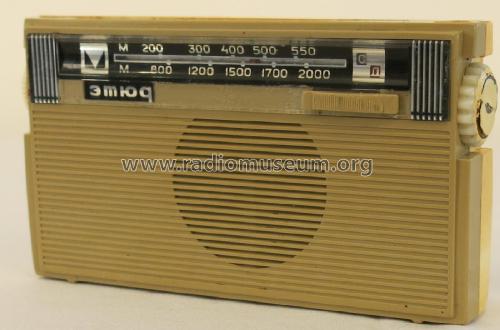

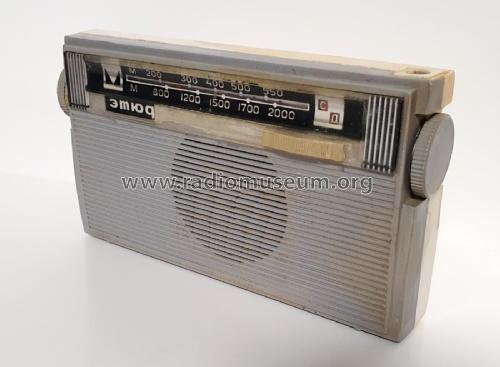

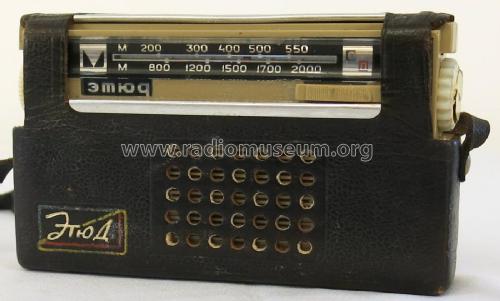

• Model: Этюд Etude, Etjüd - Minsk Radio Works; Minsk

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 139 x 76 x 24 mm / 5.5 x 3 x 0.9 inch

• Notes

• Export version: Etiud

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• Source of data
• -- Schematic

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
