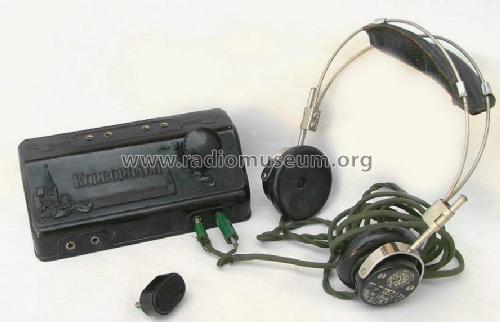

Komsomolec {Комсомолец}

• Country
• Soviet Union

• Manufacturer / Brand
• Radiofront Plant, Moscow

• Year
• 1947–1950

• Category
• Detector-Radio (Crystal or diode, without tubes/transistors)

• Radiomuseum.org ID
• 76260

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Crystal or Solid State Detector; Crystal-detection 1 circuit (no tubes)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast and LongWave in ONE range.

• Power type and voltage
• No Power needed

• Loudspeaker
• - only for Earphone!

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Komsomolec {Комсомолец} - Radiofront Plant, Moscow

• Dimensions (WHD)
• 180 x 42 x 90 mm / 7.1 x 1.7 x 3.5 inch

• Notes

• "Komsomolec" produced in others SU factories too. Made about one million sets total.

  See also the later model and a text to it.

• Net weight (2.2 lb = 1 kg)
• 0.4 kg / 0 lb 14.1 oz (0.881 lb)

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
