• Country
• Soviet Union

• Manufacturer / Brand
• Minsk Radio Works; Minsk

• Year
• 1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75779

• • alternative name: Industrial Union Horizont || Minsk Works "Kalibr"

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• П401 П401 П401 П13 П13 П13 П13 П13 Д1Б

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Line / Batteries (any type) / 110; 220 / D: 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.25 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

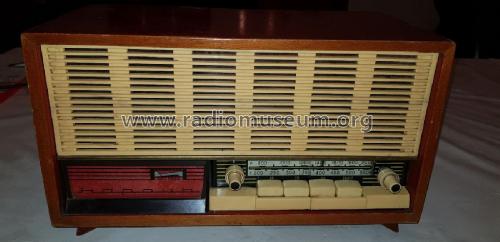

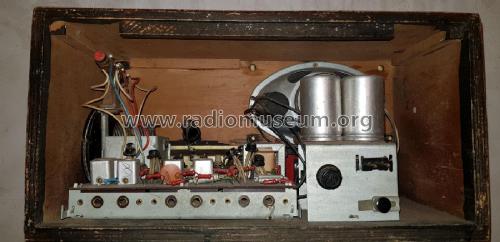

• Model: Нарочь Naroch - Minsk Radio Works; Minsk

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 330 x 175 x 170 mm / 13 x 6.9 x 6.7 inch

• Notes

• Batterieversorgung mit 6 Monozellen R20.

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Source of data
• -- Schematic

• Mentioned in
• Der praktische Radioamateur (Band 112 (electronica))

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
