- Country
- United States of America (USA)
- Manufacturer / Brand
- Mission Bell Radio Mfg. Co.; Los Angeles (CA)
- Year
- 1937
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 47367

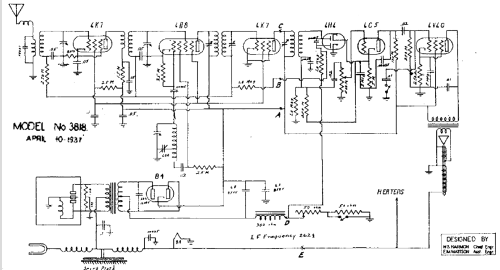

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 262.5 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: 3820 - Mission Bell Radio Mfg. Co.;
- Notes
- Built-in vibrator for B+
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 13 = 1942 and before
