• Country
• United States of America (USA)

• Manufacturer / Brand
• Mission Bell Radio Mfg. Co.; Los Angeles (CA)

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 47372

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6A7 6D6 6H6 6F5 6V6G 80

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• from Radiomuseum.org

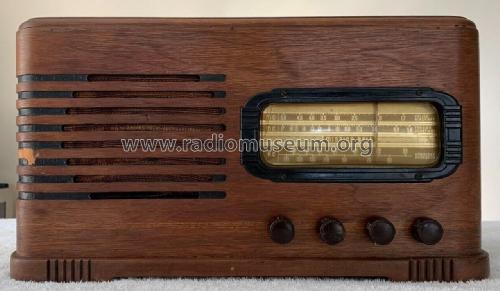

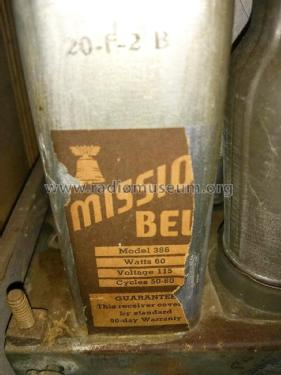

• Model: 386 - Mission Bell Radio Mfg. Co.;

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 10 = 1939 and before
