• Country
• United States of America (USA)

• Manufacturer / Brand
• Mission Bell Radio Mfg. Co.; Los Angeles (CA)

• Year
• 1934 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 47382

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 2A7 58 2A6 2A5 80

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org

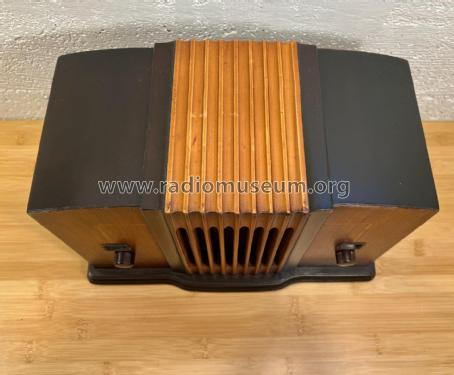

• Model: 40 AllWave - Mission Bell Radio Mfg. Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 15 x 9.75 x 7 inch / 381 x 248 x 178 mm

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 5 = ca. 1934 and before

• Other Models

• Here you find 80 models, 17 with images and 61 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
