Cyrus Tuner with Remote Control Mk2

Mission Electronics ; Huntingdon

Data
Forum
Pictures
Collections

  • Year
  • 1989
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 290672

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 100; 120; 220-240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Cyrus Tuner with Remote Control Mk2 - Mission Electronics ;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 215 x 85 x 350 mm / 8.5 x 3.3 x 13.8 inch
  • Notes

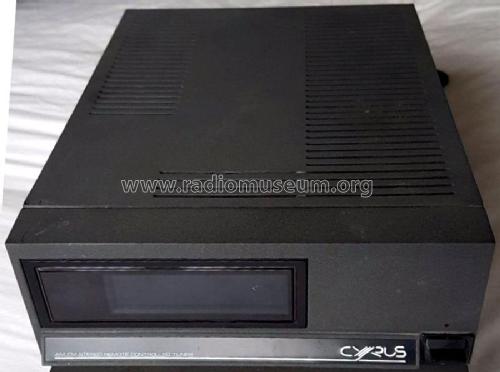

  • AM/FM Hi-Fi Tuner with digital tuning scale and remote control.

    • Total Harmonic Distortion at 1 KHz – Mono 0.15%, Stereo 0.15%
    • Ultimate Signal to Noise Ratio – Mono 82dB, Stereo 75dB
    • Capture Ratio – 1.5dB

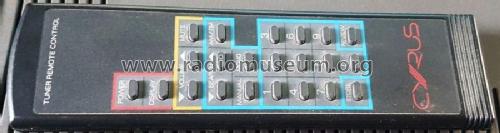

    • Remote Control – 22 Functions
    • Volume Control Range - +/- 3.75dB (1.25 steps)



  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Mentioned in
  • - - Manufacturers Literature (Mission Cyrus brochure, 1989, pg. 2)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
