Cyrus One (1) Issue 06

Mission Electronics ; Huntingdon

Data
Forum
Pictures
Collections

  • Year
  • 1984–1987
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 288287

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 100-120; 220-240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 50 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Cyrus One Issue 06 - Mission Electronics ;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 215 x 85 x 345 mm / 8.5 x 3.3 x 13.6 inch
  • Notes

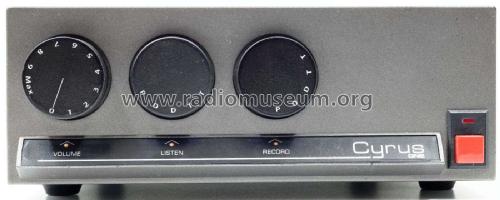

  • Mission Cyrus One Issue 06 Integrated Amplifier, serial numbers 100100-121775, built between 17/05/84 and 23/10/87.

    Stereo hi-fi integrated amplifier, 2 x 25 watts into 8 ohms, frequency response 1 - 20,000Hz, total harmonic distortion 0.005%.

    Pressed steel chassis in a grey or black graphite plastic case and front panel.

    Inputs for phono (with switch for MM or MC cartridge), CD, Tuner and Tape

    Output for Tape. Optional socket for headphones.

  • Net weight (2.2 lb = 1 kg)
  • 4 kg / 8 lb 13 oz (8.811 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
