Cyrus One (1) Issue 07

Mission Electronics ; Huntingdon

Data
Forum
Pictures
Collections

  • Year
  • 1987–1989
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 288270

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 100-120; 220-240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 50 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Cyrus One Issue 07 - Mission Electronics ;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 215 x 85 x 345 mm / 8.5 x 3.3 x 13.6 inch
  • Notes

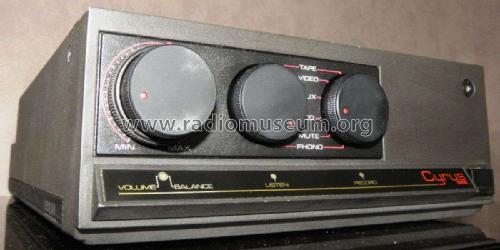

  • Mission Cyrus One Issue 07 Integrated Amplifier, serial numbers 122000-134674 built between 23/12/87 and 13/06/89.

    Stereo hi-fi integrated amplifier, 2 x 25 watts into 8 ohms, frequency response 1 - 20,000Hz, total harmonic distortion 0.005%.

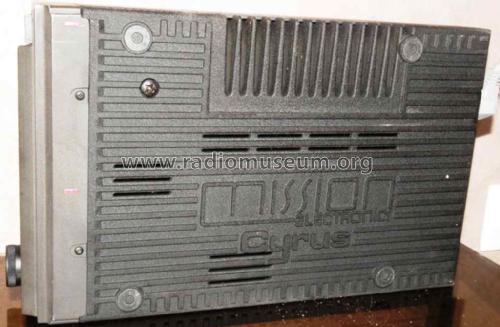

    Die-cast metal chassis in a grey or black die-cast metal case and front panel.

    Inputs for phono (with switch for MM or MC cartridge), CD, Tuner, Tape and Video.
    Output for Tape. Optional socket for headphones.

  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
