- Country
- United States of America (USA)
- Manufacturer / Brand
- Mitchell Mfg. Co., (ELCO, ESCO); Chicago, IL
- Year
- 1952 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 236709

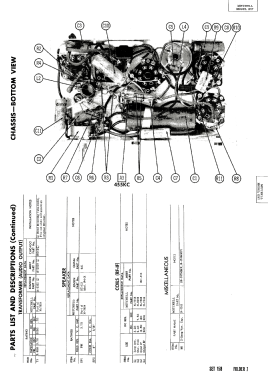

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 1267 - Mitchell Mfg. Co., ELCO, ESCO;
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Notes
-
Mitchell model 1267 is an AC operated superheterodyne receiver with electric clock, built in loop antenna.Tuning Range 540 - 1630 kHz.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (1-52, Set 158, Folder 7)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
