1258 "The Rondeau"

Mitchell Mfg. Co., (ELCO, ESCO); Chicago, IL

Data
Forum
Pictures
Collections

  • Year
  • 1953 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 47425

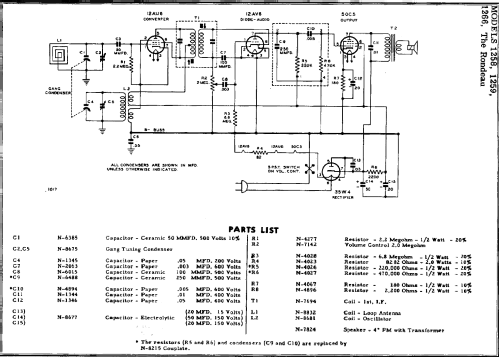

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 110 - 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 1258 "The Rondeau" - Mitchell Mfg. Co., ELCO, ESCO;
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 9.75 x 6.25 x 5.25 inch / 248 x 159 x 133 mm
  • Notes
  • As can be seen on the rear of a set, "the Rondeau" was made as model 1258 in red, as model 1259 in white and as model 1281 in ebony (black), but the SAMS Photofact set 264, folder 11 from January 1955 shows also a model 1266 in green.

    Cabinet and chassis are otherwise the same. Be careful when removing the backing cardboard: there are two wooden dowels that rest between the chassis & the backing. They each fit in the little channel where the plastic makes a foot on each side - and can get lost easily.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 23 (last), covering up to 1954
