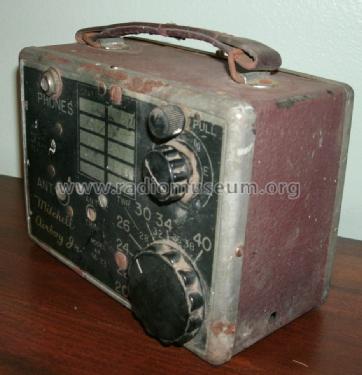

Airboy Junior AR 96-23

Mitchell Industries; Mineral Wells, TX

Data
Forum
Pictures
Collections

  • Year
  • 1947 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 250744

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Long Wave and/or Very Low Frequency (VLF).
  • Power type and voltage
  • Dry Batteries / 1.5 & 67.5 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Airboy Junior AR 96-23 - Mitchell Industries; Mineral
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 6.3 x 4.5 x 3.5 inch / 160 x 114 x 89 mm
  • Notes

  • The Airboy Junior AR 96-23 is a battery operated 4 tube LW aircraft receiver.  The LW band tuning range is 200 to 410kHz.  Uses Qty(2) 1.5V "D" size batteries (in parallel) and Qty(1) 67.5V battery.



    This model is similar to the Motorola AR 96-23.

  • Author
  • Model page created by Mark Skala. See "Data change" for further contributors.
