• Country
• Japan

• Manufacturer / Brand
• Mitsubishi Electric Corporation

• Year
• 1965/1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 188817

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• 2SA352 2SA351 2SA12 2SA12 2SB75 2SB77 2SB156 2SB156 2SB75 2SB75

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / C: 3 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm

• Power out
• 0.25 W (0.3 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

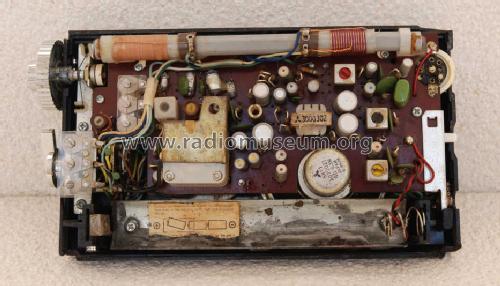

• Model: 10X718T - Mitsubishi Electric

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 8 x 4.59375 x 1.6875 inch / 203 x 117 x 43 mm

• Notes

• Features "illumicator", fine tuning and tone control.

  MW: 525 - 1605 kHz
  SW1: 2.3 - 6.0 MHz
  SW2: 6.0 - 18.0 MHz

• Net weight (2.2 lb = 1 kg)
• 0.860 kg / 1 lb 14.3 oz (1.894 lb)

• Price in first year of sale
• 90.00 AUS $

• Source of data
• -- Collector info (Sammler)

• Mentioned in
• Mingay's Price Service (Feb 1966.)

• Literature/Schematics (1)
• J.R. Publications Transistor Radio Service Handbook (Group C5, 1968, Page M44.)

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
