• Country
• Japan

• Manufacturer / Brand
• Mitsubishi Electric Corporation

• Year
• 1955 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 335260

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 30A5 35W4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 100 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

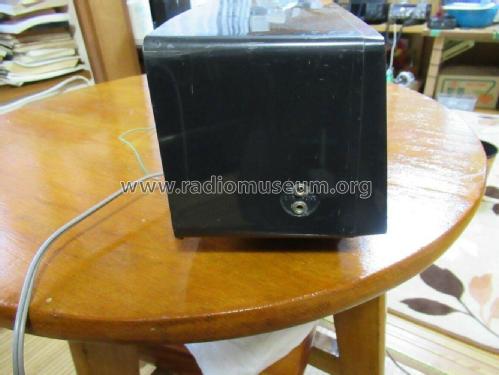

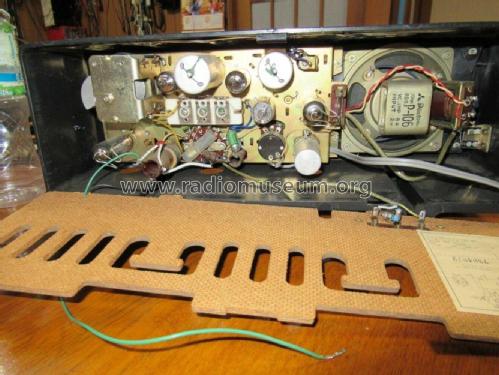

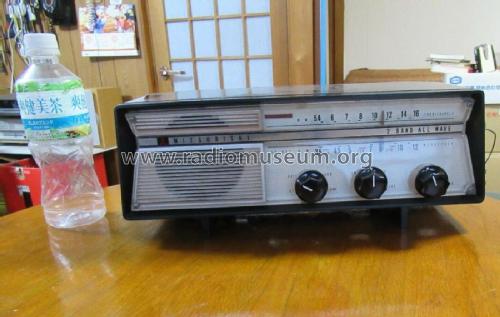

• Model: 2 Band All Wave 5P-270 - Mitsubishi Electric

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 370 x 150 x 130 mm / 14.6 x 5.9 x 5.1 inch

• Notes

• This model is for the Japan 100 volt market.

• Author
• Model page created by Aldo Andreani. See "Data change" for further contributors.
