• Country
• Japan

• Manufacturer / Brand
• Mitsubishi Electric Corporation

• Year
• 1968 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 232119

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SA147 2SA148 2SA146 2SA141 2SB135 2SB135 2SB156 2SB156 MD60

• Main principle
• Superheterodyne (common); 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / AA: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

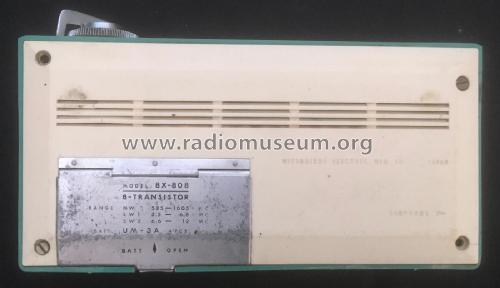

• Model: 8 Transistor 8X-808 - Mitsubishi Electric

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by a member from A. See "Data change" for further contributors.
