• Country
• Japan

• Manufacturer / Brand
• Mitsubishi Electric Corporation

• Year
• 1977

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 208574

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

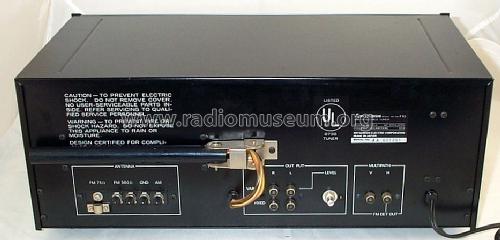

• Model: AM/FM Stereo Tuner DA-F10 - Mitsubishi Electric

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 425 x 170 x 264 mm / 16.7 x 6.7 x 10.4 inch

• Notes
• AM/FM Stereo Tuner, Signal und Tuning-Meter.
  Selektivität schaltbar. Locked-Tuning.

• Net weight (2.2 lb = 1 kg)
• 7.5 kg / 16 lb 8.3 oz (16.52 lb)

• Price in first year of sale
• 300.00 $

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
