• Country
• Japan

• Manufacturer / Brand
• Mitsubishi Electric Corporation

• Year
• 1982 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 153980

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

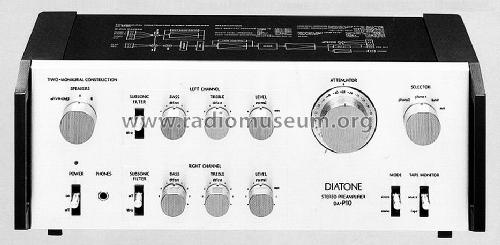

• Model: DA-P10 - Mitsubishi Electric

• Shape
• Rack

• Dimensions (WHD)
• 425 x 170 x 204 mm / 16.7 x 6.7 x 8 inch

• Notes
• Zwei komplett getrennte Vorverstärker, links und rechts, zwei separate Netzteile, separate Klangregelung L/R, Subsonic Filter L/R.
  Klirrfaktor 0,002% (20-20.000Hz).

• Net weight (2.2 lb = 1 kg)
• 5.8 kg / 12 lb 12.4 oz (12.775 lb)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
