• Country
• Japan

• Manufacturer / Brand
• Mitsubishi Electric Corporation

• Year
• 1982 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 153981

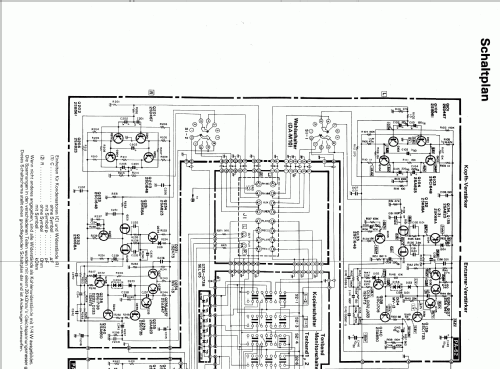

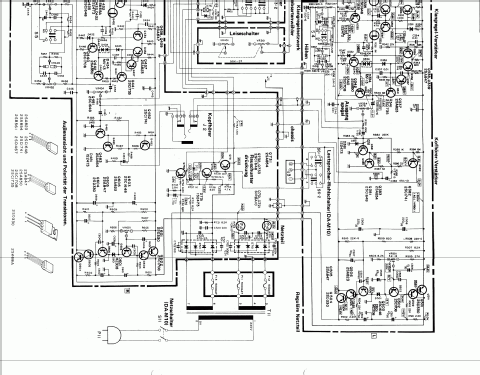

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: DA-P20 - Mitsubishi Electric

• Shape
• Rack

• Dimensions (WHD)
• 425 x 170 x 204 mm / 16.7 x 6.7 x 8 inch

• Notes
• Doppel Mono Vorverstärker.

• Net weight (2.2 lb = 1 kg)
• 5.3 kg / 11 lb 10.8 oz (11.674 lb)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
