• Country
• Japan

• Manufacturer / Brand
• Mitsubishi Electric Corporation

• Year
• 1984 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 149775

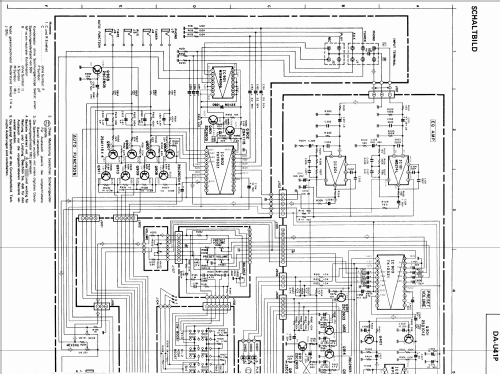

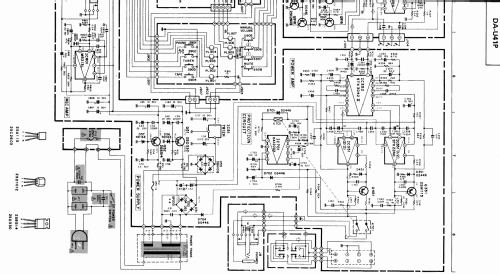

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 80 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: DA-U41P - Mitsubishi Electric

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 355 x 103 x 240 mm / 14 x 4.1 x 9.4 inch

• Notes
• Stereo-Vollverstärker mit 2 x 40 Watt Sinus an 8 Ohm. Kopfhöreranschluss, Mikrofoneingang.
  2 Netzbuchsen an der Geräterückseite (1xungeschaltet).

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
