• Country
• Japan

• Manufacturer / Brand
• Mitsubishi Electric Corporation

• Year
• 1978

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 157286

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 100 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Diatone M-P01 - Mitsubishi Electric

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 270 x 70 x 247 mm / 10.6 x 2.8 x 9.7 inch

• Notes

• Mitsubishi Stereo Preamplfier Model Diatone M-P01.

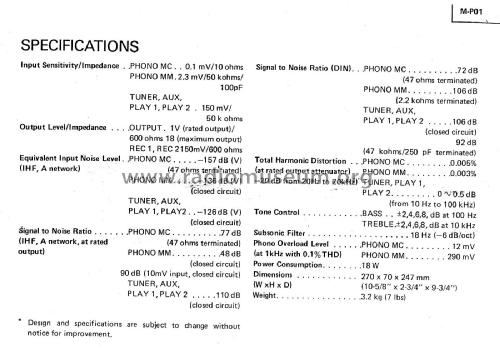

  Frequency response: 10Hz to 100kHz
  Total harmonic distortion: 0.005%
  Input sensitivity: 0.1mV (MC), 2.3mV (MM), 150mV (line)
  Signal to noise ratio: 77dB (MC), 110dB (line)
  Output: 150mV (line), 1V (Pre out), 18V (Pre out Max)
  Bass Control: +/-2,4,6,8 dB at 100Hz
  Treble Control +/-2,4,6,8 dB at 10000Hz
  SubSonic FIlter 18Hz (-6dB/Oct)

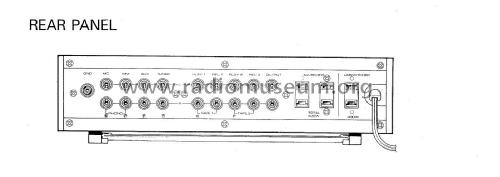

  AC-Outlets:
  2x Switched max. 400Watts
  1x Unswitched max. 400 Watts
  Power Consumption max. 15 Watts
  For Japanese Market (100V mains)


• Net weight (2.2 lb = 1 kg)
• 3.2 kg / 7 lb 0.8 oz (7.048 lb)

• Price in first year of sale
• 55,000.00 JPY
