• Country
• Japan

• Manufacturer / Brand
• Mitsubishi Electric Corporation

• Year
• 1980

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 198346

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 100 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

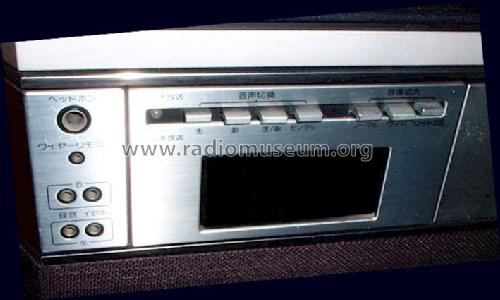

• Model: Diatron 22CK-B94W - Mitsubishi Electric

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 610 x 910 x 500 mm / 24 x 35.8 x 19.7 inch

• Notes
• Mitsubishi Diatron 22CK-B94W;
  22" NTSC color TV, Japanese standard 12 presets VHF & UHF electronic tuner.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
