• Country
• Japan

• Manufacturer / Brand
• Mitsubishi Electric Corporation

• Year
• 1984 ?

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 149704

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

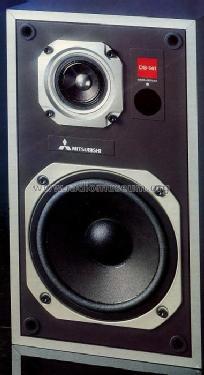

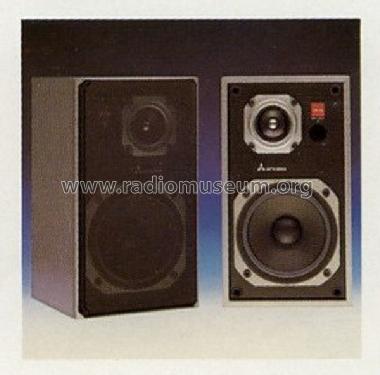

• Model: DS-141 - Mitsubishi Electric

• Dimensions (WHD)
• 200 x 355 x 210 mm / 7.9 x 14 x 8.3 inch

• Notes
• 2-Weg-Regalbox mit 80 Watt Belastbarkeit an 6 Ohm, 55 - 20.000 Hz, 90dB/W/M.
  Bass-Mitteltöner 160mm Konus, HT 50mm Konus, Frequenzweiche Übergang bei 5.000 Hz.
  Silberfarbenes Gehäuse.

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
