Dual Monaural Construction Tuner-Preamplifier DA-C20

Mitsubishi Electric Corporation

Data
Forum
Pictures
Collections

  • Year
  • 1978
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 208565

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Dual Monaural Construction Tuner-Preamplifier DA-C20 - Mitsubishi Electric
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 425 x 170 x 292 mm / 16.7 x 6.7 x 11.5 inch
  • Notes
  • Dual Monaural Construction Tuner-Preamplifier, AM/FM Band, Subsonic Filter, FM-Muting, Hi-Blend, Signal- and Tuning-Meter.

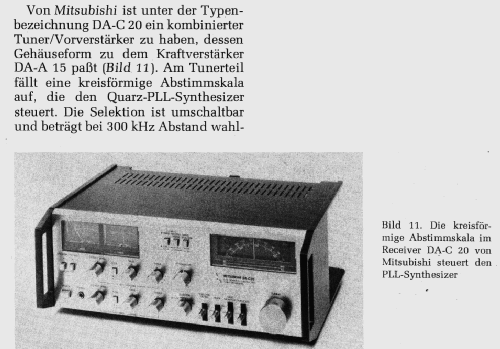

    Review: Audio 1979
  • Net weight (2.2 lb = 1 kg)
  • 7.5 kg / 16 lb 8.3 oz (16.52 lb)
  • Price in first year of sale
  • 490.00 $
  • Source of data
  • - - Manufacturers Literature
  • Mentioned in
  • Funkschau ((21/1978, S. 1000))
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
