Farbfernseher CP-1627EM

Mitsubishi Electric Corporation

Data
Forum
Pictures
Collections

  • Year
  • 1982
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 210545

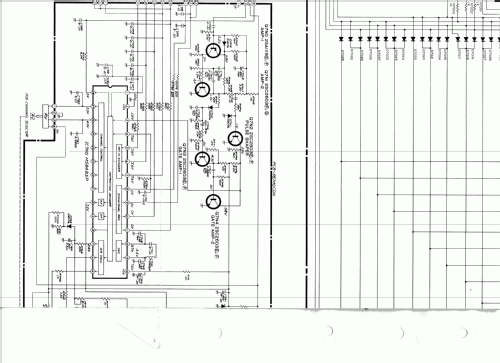

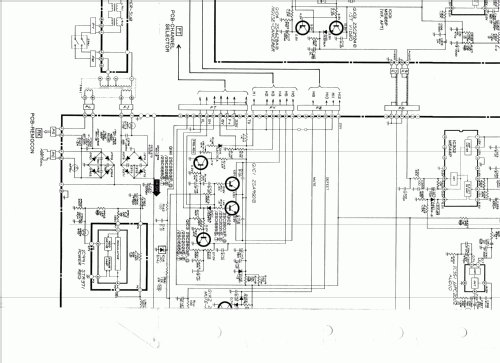

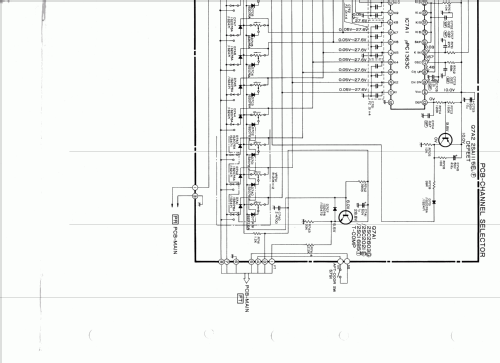

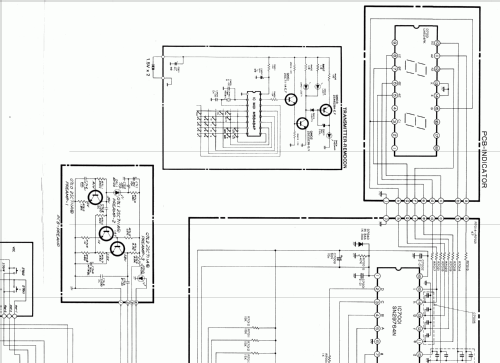

Click on the schematic thumbnail to request the schematic as a free document.

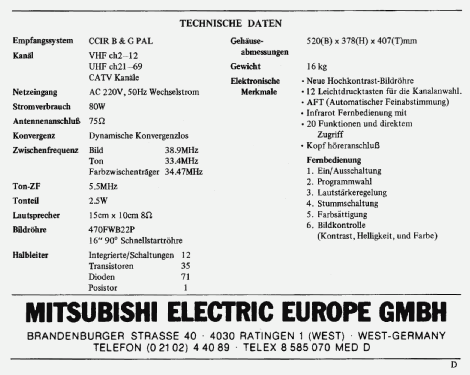

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Details
  • Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 2.5 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Farbfernseher CP-1627EM - Mitsubishi Electric
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 520 x 378 x 407 mm / 20.5 x 14.9 x 16 inch
  • Notes

  • Portabler Farbfernseher

    • CCIR B&G PAL
    • VHF K2-12
    • UHF K21-69
    • CATV Kanäle
    • 42cm/16 Zoll 90 Grad Schnellstartbildröhre
    • 12 Programmtasten mit AFC
    • IR Fernsteuerung
  • Net weight (2.2 lb = 1 kg)
  • 16 kg / 35 lb 3.9 oz (35.242 lb)
  • Price in first year of sale
  • 998.00 DM
  • Source of data
  • -- Original-techn. papers.
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
