• Country
• Japan

• Manufacturer / Brand
• Mitsubishi Electric Corporation

• Year
• 1971 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106869

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 2 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

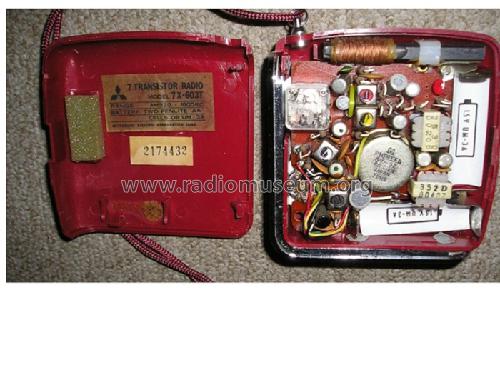

• Model: L´amour 7 7X603T - Mitsubishi Electric

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 90 x 30 x 90 mm / 3.5 x 1.2 x 3.5 inch

• Notes
• Pocketradio, nur MW: 520...1605 KHz, Betrieb mit 2× 1,5 V-Zellen UM-3A, Lautsprecher 6 Ohm, das Gerät gleicht optisch dem Stern Club von Stern Radio Berlin.

• Net weight (2.2 lb = 1 kg)
• 0.1 kg / 0 lb 3.5 oz (0.22 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
