• Country
• Japan

• Manufacturer / Brand
• Mitsubishi Electric Corporation

• Year
• 1962

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 197703

• Number of Tubes
• 2

• Valves / Tubes
• 5642 150AB4

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 100 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: Micro-TV Micro 6 6P-125 - Mitsubishi Electric

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 175 x 150 x 200 mm / 6.9 x 5.9 x 7.9 inch

• Notes

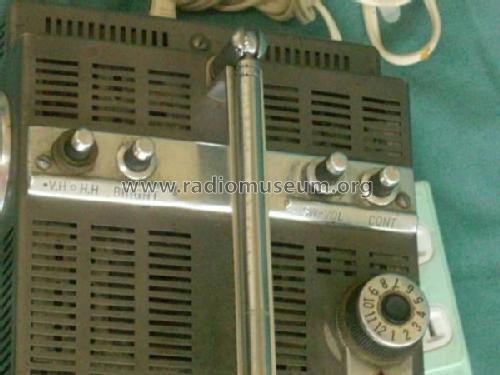

• Mitsubishi Micro-TV Micro 6, 6P-125 (Type still unproven);
  6" b/w TV with japanese standard 12 channel VHF turret tuner, hook-up AC adaptor, portable leather box,
  at it´s time the world smallest micro-TV.
  Compare with the most similar US or Canada version 6P-125X or 6P-126 (Type still unproven) & the most common Singer branded TV6 (TV6U) as OEM product.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
