• Country
• Japan

• Manufacturer / Brand
• Mitsubishi Electric Corporation

• Year
• 1985 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 209733

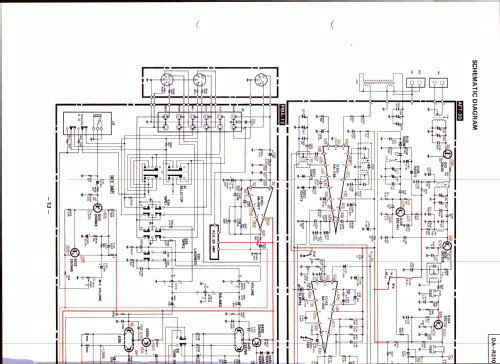

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Receiver DA-R210 - Mitsubishi Electric

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 425 x 155 x 315 mm / 16.7 x 6.1 x 12.4 inch

• Notes

• AM/FM Stereo Receiver.
  Bass-, Treble-, Loudness-Control.
  Tape Monitor 1, 2.
  Speakers A + B.

  2 x 25 Watt Dauerleistung, bei gleichzeitigem Betrieb beider Kanäle an 8 Ohm von 20 - 20.000 Hz, bei Klirrfaktor 0,1 %.

  2 x 30 Watt Dauerleistung, bei gleichzeitigem Betrieb beider Kanäle an 4 Ohm von 20 - 20.00Hz, bei Klirrfaktor 0,3 %.



• Net weight (2.2 lb = 1 kg)
• 7.6 kg / 16 lb 11.8 oz (16.74 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
