• Country
• Japan

• Manufacturer / Brand
• Mitsubishi Electric Corporation

• Year
• 1984 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 251090

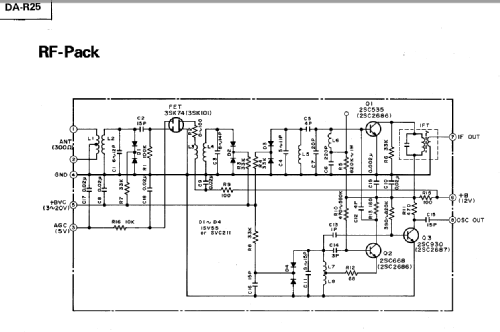

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 120 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Receiver DA-R25 - Mitsubishi Electric

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 470 x 135 x 436 mm / 18.5 x 5.3 x 17.2 inch

• Notes

• Mitsubishi AM-FM Stereo Receiver Model DA-R25.
  Quartz Frequency Synthesizer
  2x 60 Watts RMS into 8 Ohms, 20 - 20000 Hz, 0,015%
  Phono (MM) IN, Phono (MC) IN, AUX IN
  Bass- & Treble Control. High- & Low-Filter, Loudness
  Tuning Range:
  FM 87,9 - 107,9 MHz,
  AM 530 - 1620 kHz
  7 Station Preset
  Speakers A, B, A+B
  Power Consumption 210 Watts.

• Net weight (2.2 lb = 1 kg)
• 12.5 kg / 27 lb 8.5 oz (27.533 lb)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.

• Other Models

• Here you find 323 models, 264 with images and 92 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Mitsubishi Electric Corporation
