• Country
• Japan

• Manufacturer / Brand
• Mitsubishi Electric Corporation

• Year
• 1980 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 211813

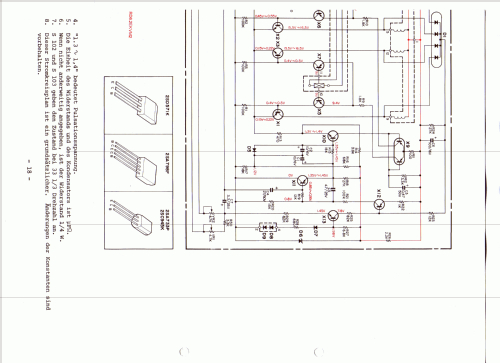

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 120; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• from Radiomuseum.org
• Model: Turntable DP-86DA - Mitsubishi Electric

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 478 x 149 x 383 mm / 18.8 x 5.9 x 15.1 inch

• Notes
• Vollautomatischer Plattenspieler. Direktantrieb, S-förmiger Tonarm.

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.
