VHS-Videorecorder HS-303E
Mitsubishi Electric Corporation
- Country
- Japan
- Manufacturer / Brand
- Mitsubishi Electric Corporation
- Year
- 1982 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 246801

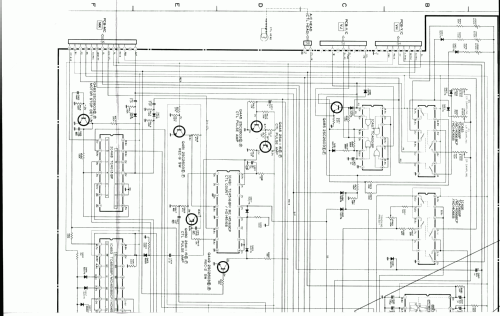

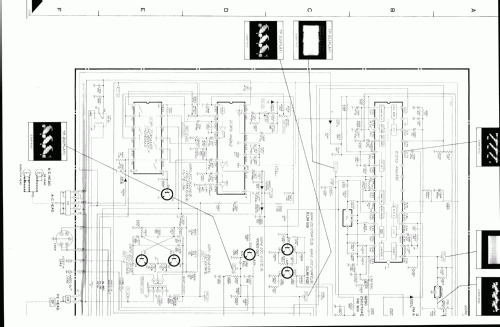

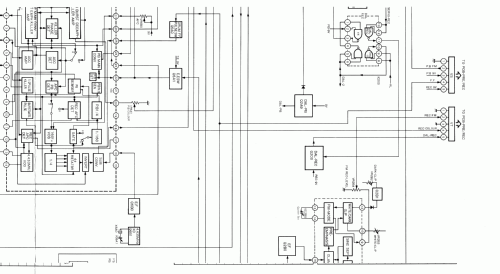

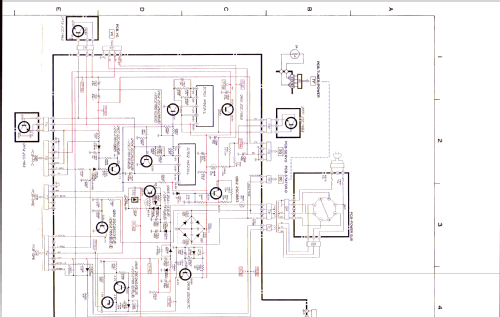

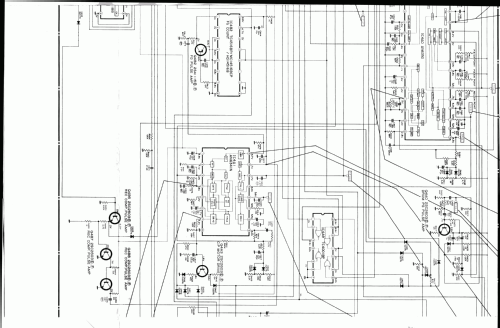

Service Manual

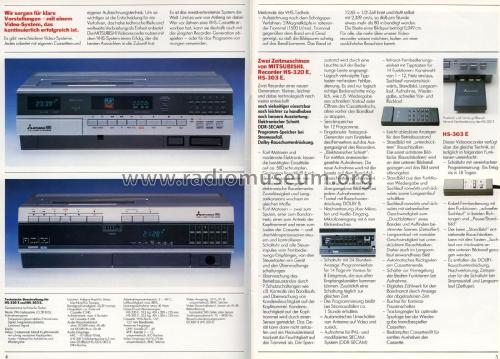

Mitsubishi Catalogue 1984
Mitsubishi Catalogue 1984
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Video-Taperecorder/-Player
- Power type and voltage
- Alternating Current supply (AC) / 110; 120; 220; 240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: VHS-Videorecorder HS-303E - Mitsubishi Electric
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 424 x 125 x 354 mm / 16.7 x 4.9 x 13.9 inch
- Notes
-
VHS-Videorecorder PAL Standard (B.G).
Empfang VHF K2-12, UHF K21-69.
Ausgang justierbar K34-38.
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by a member from D. See "Data change" for further contributors.
