Videorecorder VHS HS-320E
Mitsubishi Electric Corporation
- Country
- Japan
- Manufacturer / Brand
- Mitsubishi Electric Corporation
- Year
- 1982 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 244725
Service Manual
Mitsubishi Catalogue 1984
Mitsubishi Catalogue 1984

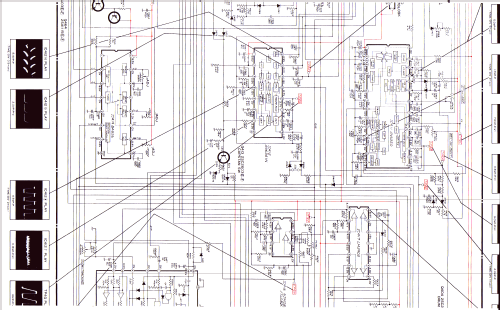

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Video-Taperecorder/-Player
- Power type and voltage
- Alternating Current supply (AC) / 110, 120, 220, 240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Videorecorder VHS HS-320E - Mitsubishi Electric
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 424 x 125 x 354 mm / 16.7 x 4.9 x 13.9 inch
- Notes
-
Videorecorder VHS PAL-Standard. Empfangskanäle E2-E12, E21-E69. Ausgangskanal einstellbar E34-E38.
- Net weight (2.2 lb = 1 kg)
- 9.5 kg / 20 lb 14.8 oz (20.925 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by a member from D. See "Data change" for further contributors.
