Elba UCM-561

• Country
• Italy

• Manufacturer / Brand
• Mivar (VAR); Milano

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 108025

• Picture

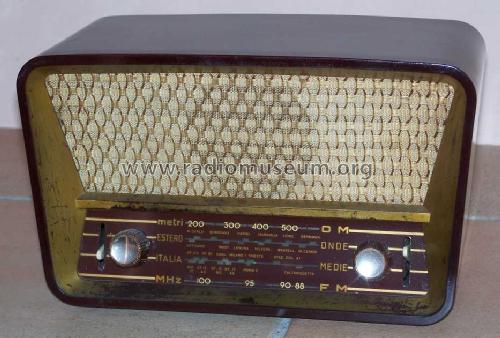

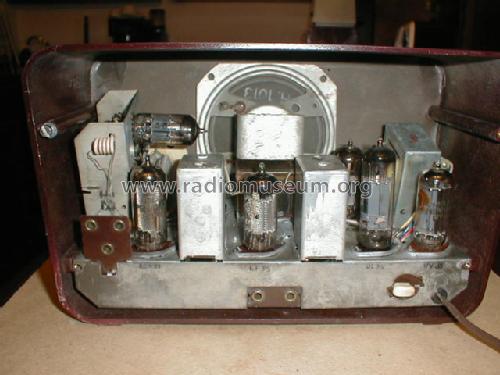

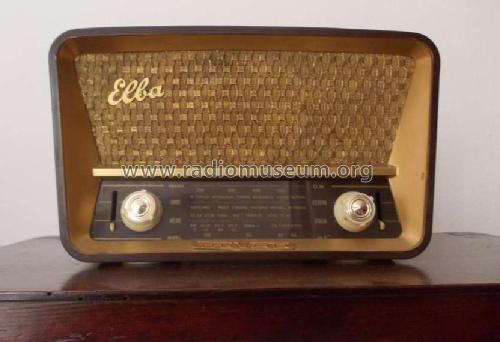

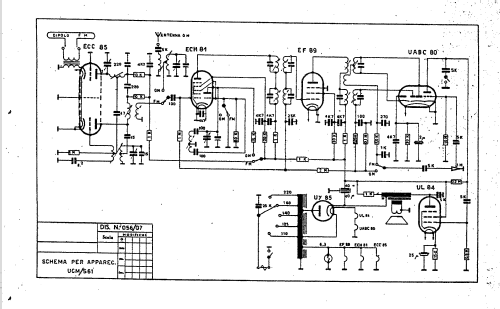

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 UABC80 UL84 UY85

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Elba UCM-561 - Mivar VAR; Milano

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 280 x 170 x 130 mm / 11 x 6.7 x 5.1 inch

• Notes

• Gamme d'onda: modulazione di ampiezza da 190 a 580 mt, modulazione di frequenza da 87,5 a 100 MHz

  Prodotta in almeno 2 diversi colori. Controllo di tono a sinistra del comando del volume. Cambio gamma a destra del comando di sintonia. Ingresso fono.

  Commercializzata anche con altri marchi elencati sotto VAR UCM-561.

• Net weight (2.2 lb = 1 kg)
• 2.6 kg / 5 lb 11.6 oz (5.727 lb)

• Source of data
• Guida Pratica Antique Radio II (2000)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
