Milo UCM584-F

• Country
• Italy

• Manufacturer / Brand
• Mivar (VAR); Milano

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 108028

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 UABC80 EM81 UL84 UY85

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Milo UCM584-F - Mivar VAR; Milano

• Shape

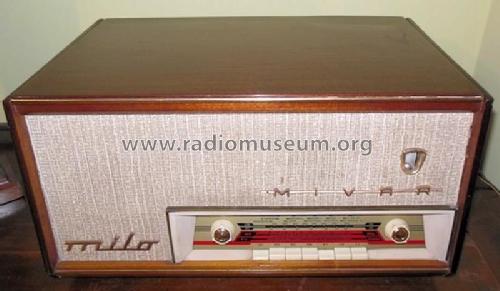

• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 490 x 250 x 330 mm / 19.3 x 9.8 x 13 inch

• Notes

• Giradischi a 4 velocità costruito dalla Lesa, marchiato Mivar. 1 altoparlante magnetodinamico ellittico per le frequenze medio/basse ed un piccolo altoparlante magnetodinamico rotondo per le frequenze più alte. Alimentazione con autotrasformatore per cui il telaio è collegato alla rete elettrica.


  4 speed turntable.

• Source of data
• Guida Pratica Antique Radio II (2000)

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
