- Country
- Italy
- Manufacturer / Brand
- Mivar (VAR); Milano
- Year
- 1967 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 166457

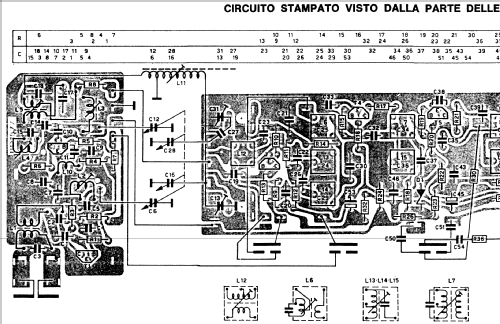

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 5
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: R52 - Mivar VAR; Milano
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 315 x 135 x 120 mm / 12.4 x 5.3 x 4.7 inch
- Notes
-
5 transistor al silicio, 4 diodi. Lampada per scala 6 V 50 mA. Consumo 8 Watt.
Mobile in ABS con finiture metalliche, esiste in diverse versioni.
Transistors
- Tuner T1, T2 : BF255
- MF T3, T4, T5 : BF253
- Net weight (2.2 lb = 1 kg)
- 1.9 kg / 4 lb 3 oz (4.185 lb)
- External source of data
- Guida Pratica Antique Radio Vol. 1
- Source of data
- Guida Pratica Antique Radio (1) 1999
- Author
- Model page created by Enrico Puccini. See "Data change" for further contributors.
- Other Models
-
Here you find 135 models, 122 with images and 81 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Mivar (VAR); Milano
Collections
The model is part of the collections of the following members.
Forum contributions about this model: Mivar VAR; Milano: R52
Threads: 1 | Posts: 2
Buonasera, sono Masetti Fabio, vorrei sapere se l'apparecchio è realmente un R 52. Ho lo schema dell' R 52 ed è a transistor. Il dilemma è che la Mivar l'apparecchi a valvole li siglava con UCM...., mentre quelli a transistor con una sigla iniziante con la R.
Tutto questo perchè ho anche io un apparecchio identico, ma non ho trovato nessuna sigla del modello.
Saluti Masetti Fabio.
Fabio Masetti, 24.Jan.11
