• Country
• Italy

• Manufacturer / Brand
• Mivar (VAR); Milano

• Year
• 1968 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 335666

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECC85 ECH81 EF89 ECL86

• Number of Transistors
• 3

• Semiconductors
• AA119 AA119 OA91 BY123

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 160; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 140 cm = 55.1 inch

• Material
• Wooden case

• from Radiomuseum.org

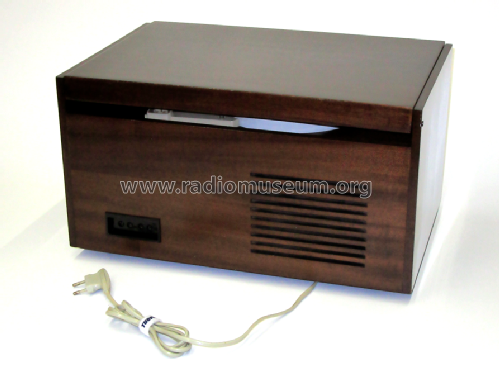

• Model: RF35 - Mivar VAR; Milano

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 443 x 245 x 295 mm / 17.4 x 9.6 x 11.6 inch

• Notes

• Giradischi produzione Lesa, trazione a puleggia, velocità non stabilizzata: 16; 33 1/3, 45, 78 giri/min.

  Rilevatore fonografico Lesa F3 con doppia puntina in zaffiro per microsolco e 78 giri/min.

  Ricezione FM da 84 a 105 MHz, commutatore per audio TV (banda I e III, canali A-H)

• Net weight (2.2 lb = 1 kg)
• 5.1 kg / 11 lb 3.7 oz (11.233 lb)

• Author
• Model page created by Mario Banfi. See "Data change" for further contributors.
