Rodi UCM581/2

• Country
• Italy

• Manufacturer / Brand
• Mivar (VAR); Milano

• Year
• 1961 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 121411

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 UL84 UY85

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Rodi UCM581/2 - Mivar VAR; Milano

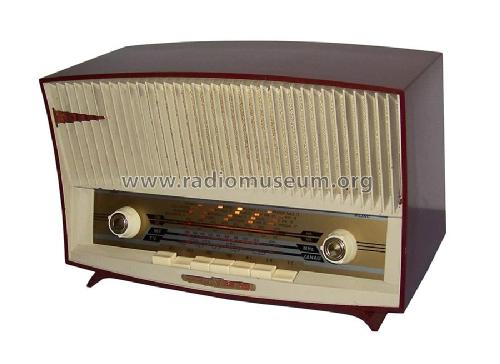

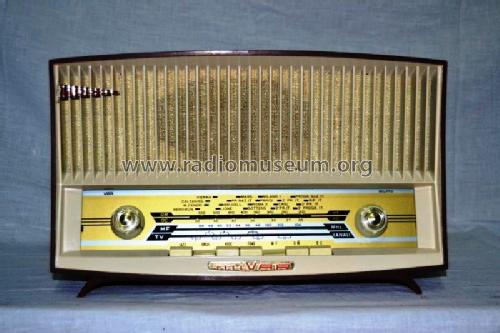

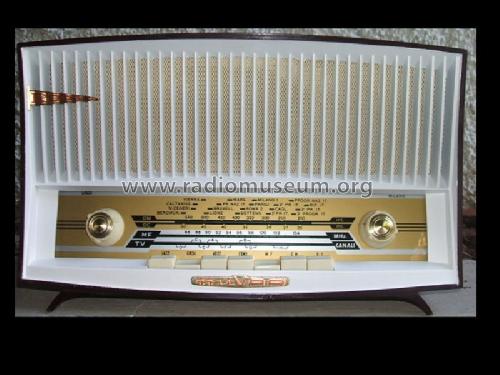

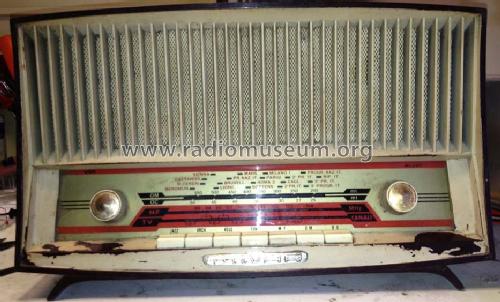

• Shape
• Tablemodel with Push Buttons.

• Notes

• Gamme d'onda: medie, corte, FM, TV.
  Wave bands: BC, SW, FM, audio-TV.

  See also Sangrau FM/64RF

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
