• Country
• Czechoslovakia

• Manufacturer / Brand
• Modry Bod, Praha-Kolin

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23023

• • Brand: Ideal-Radio (Blaupunkt CS)

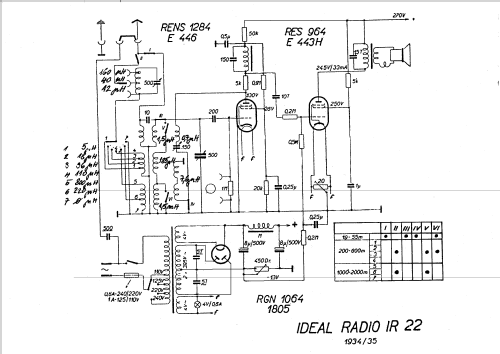

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• E446 E443H 1805

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Ideal Radio IR22 - Modry Bod, Praha-Kolin

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 398 x 320 x 255 mm / 15.7 x 12.6 x 10 inch

• Price in first year of sale
• 890.00 Kc

• External source of data
• Erb

• Source of data
• Ceskoslovenske prijimace 1933-1945, Baudys 1947
