• Country
• Czechoslovakia

• Manufacturer / Brand
• Modry Bod, Praha-Kolin

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23036

• • Brand: Ideal-Radio (Blaupunkt CS)

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• CK1 CF7 CB2 CL4 CY1

• Main principle
• Superheterodyne (common); ZF/IF 491 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110/125W, 150-250A Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Wooden case

• from Radiomuseum.org

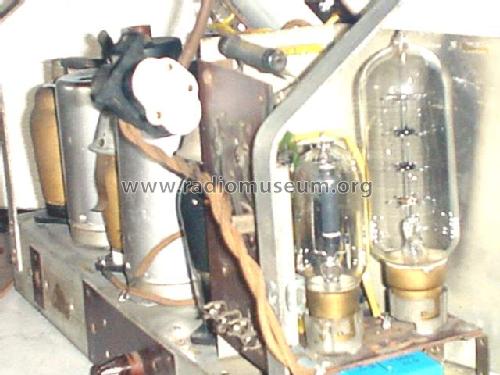

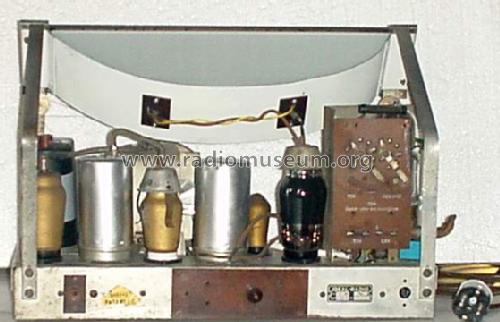

• Model: Ideal Radio Junior Super S356U - Modry Bod, Praha-Kolin

• Notes
• (nicht CK2, die es nicht gibt!) Super mit nicht bedienbarer Rückkopplung.

• External source of data
• Erb

• Source of data
• Ceskoslovenske prijimace 1933-1945, Baudys 1947
